This is an introduction to the N32B Slim by SHIK, available at Takazudo Modular.
N32B Slim is a compact MIDI controller equipped with 32 programmable potentiometers. Packed into a slim metal body measuring 208mm x 135mm x 19mm, it delivers 4095-step high-resolution control and flexible customization features, enabling integrated control of DAWs and hardware synthesizers.
This product is available for purchase below.
メールアドレスをご登録いただくと、入荷時にお知らせいたします。
ご購入の事前予約を受け付けております。
登録確認後、詳細情報をメールにてお知らせいたします。
Takazudo Modularではマニュアル等の日本語訳付きを作成し、公開しています。以下よりご参照下さい。
- Product Photos
- High-Resolution 32-Knob Control
- Key Features
- N32B Editor
- Connectivity
- Specifications
- Dimension Image
- Compatibility
- Takazudo and SHIK Brand MIDI Controllers
- Included Accessories

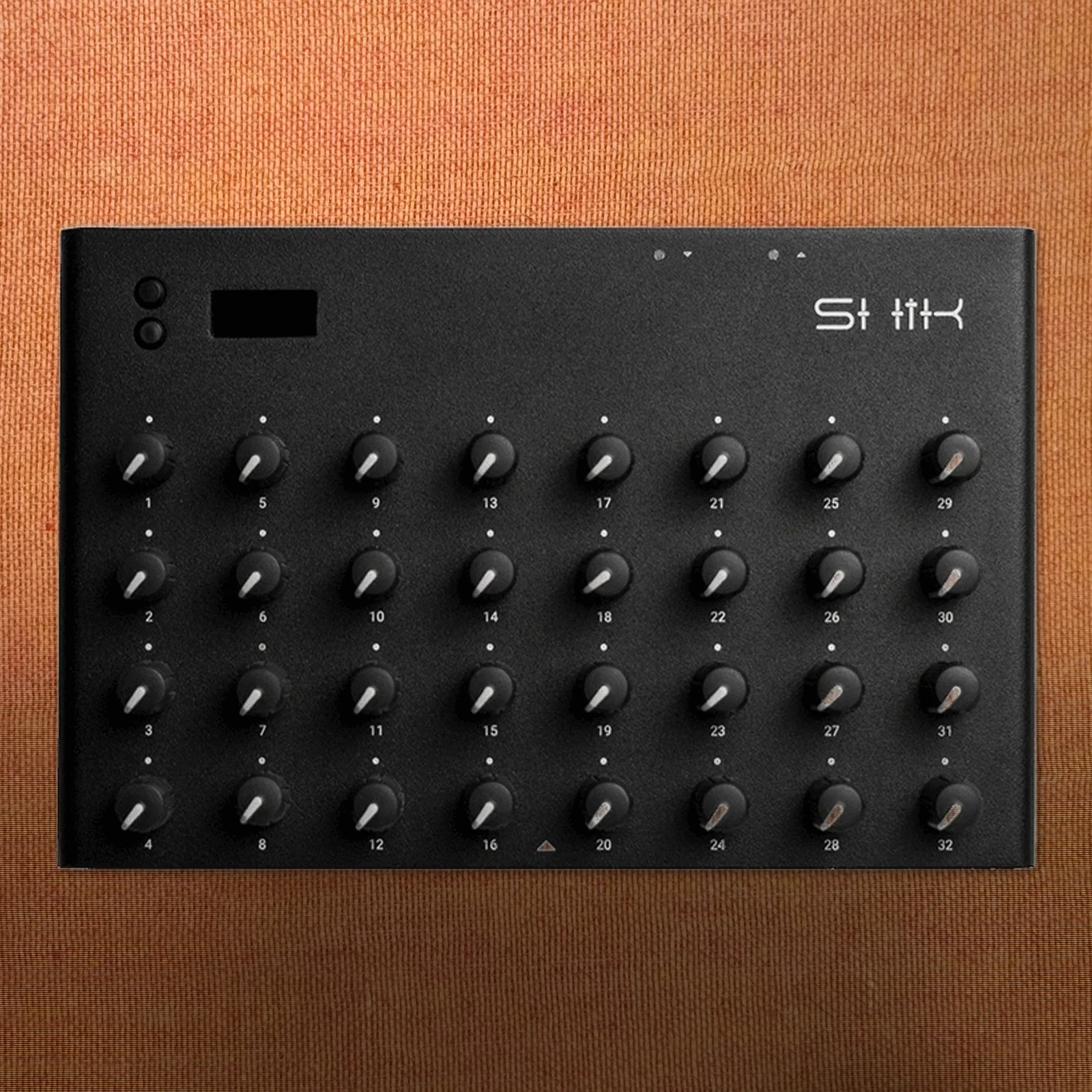

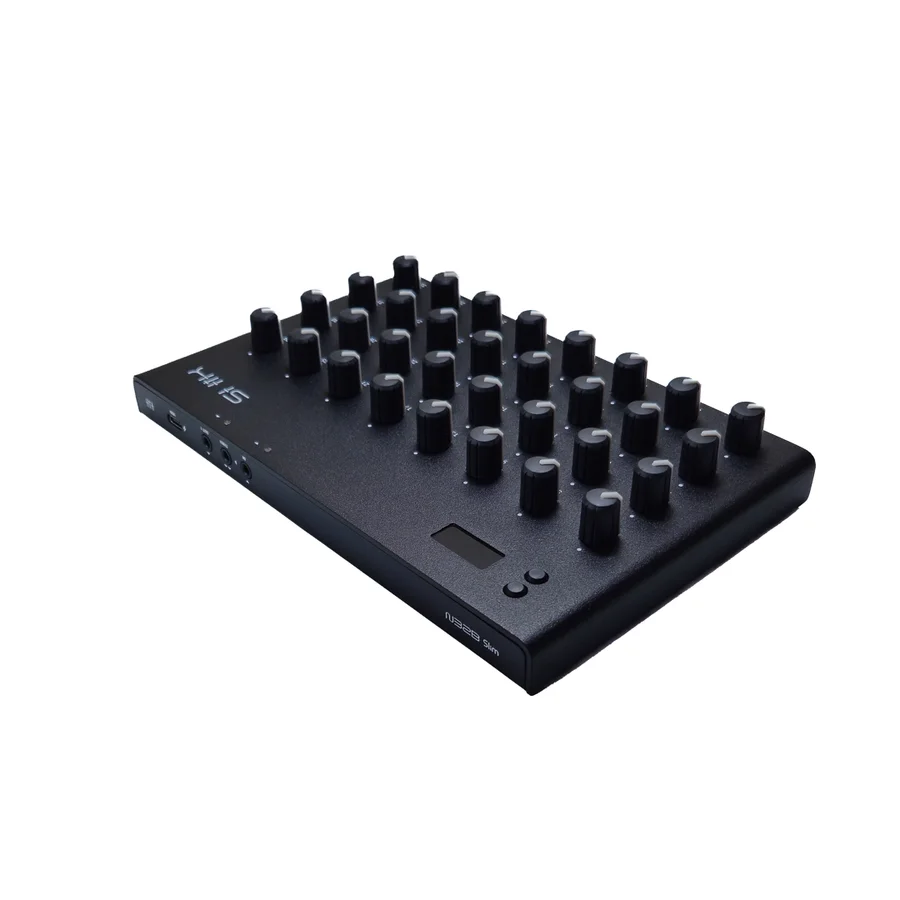

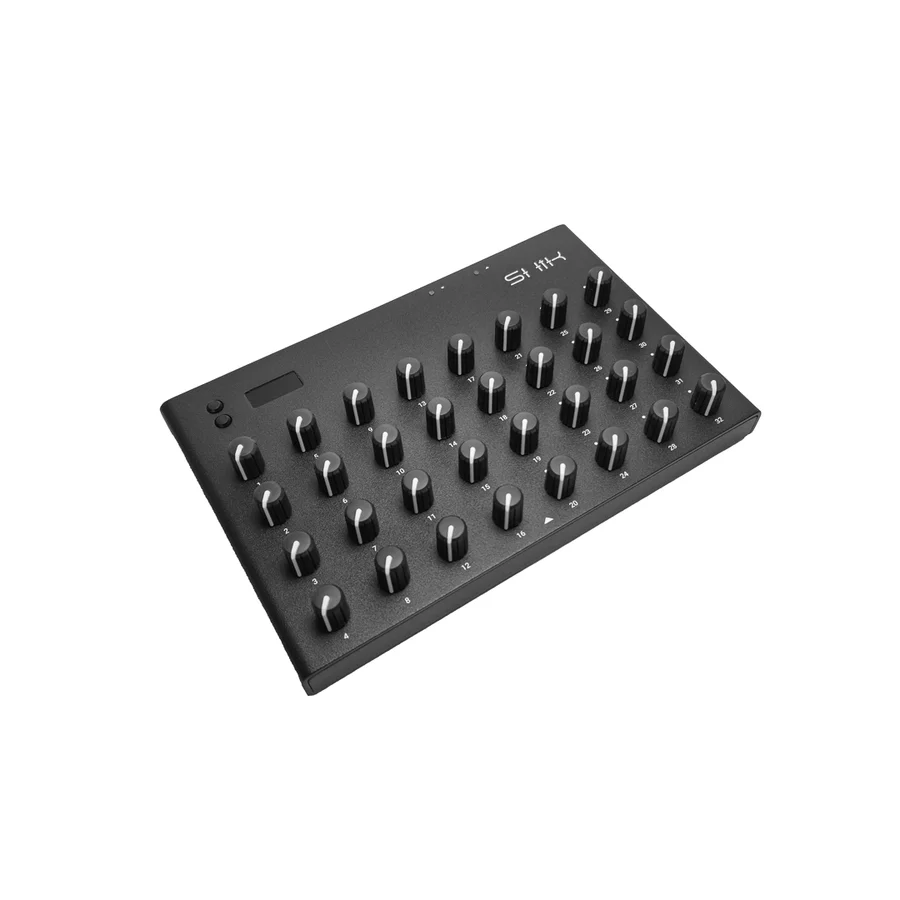

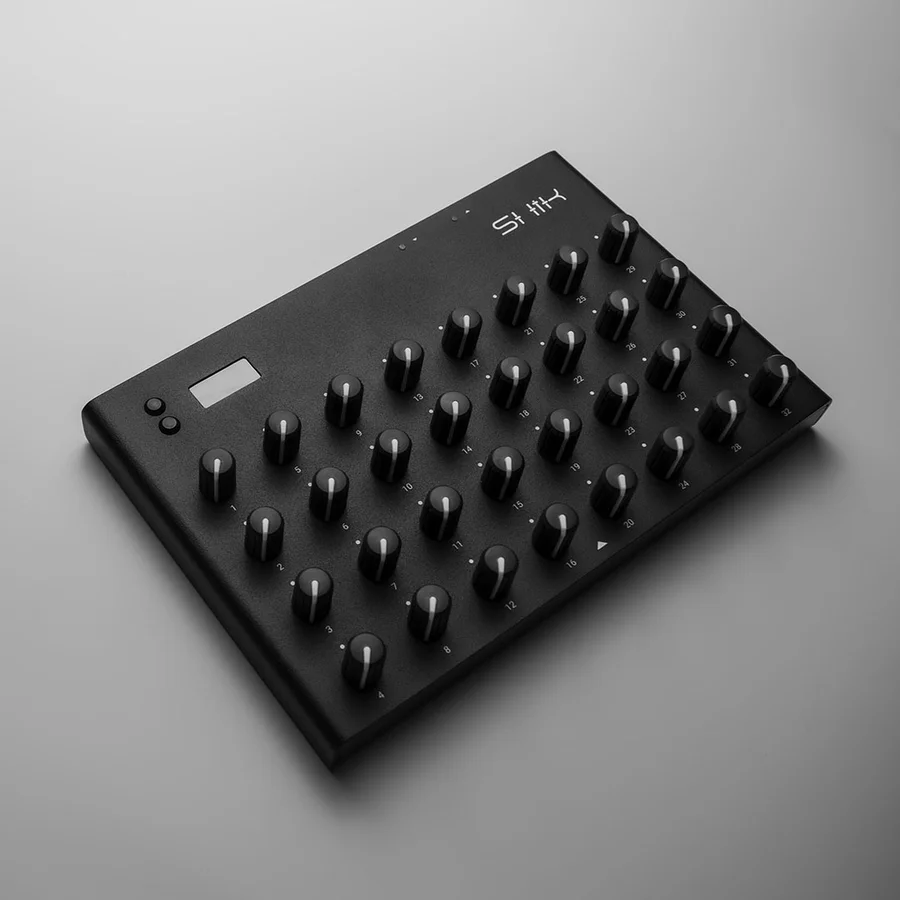

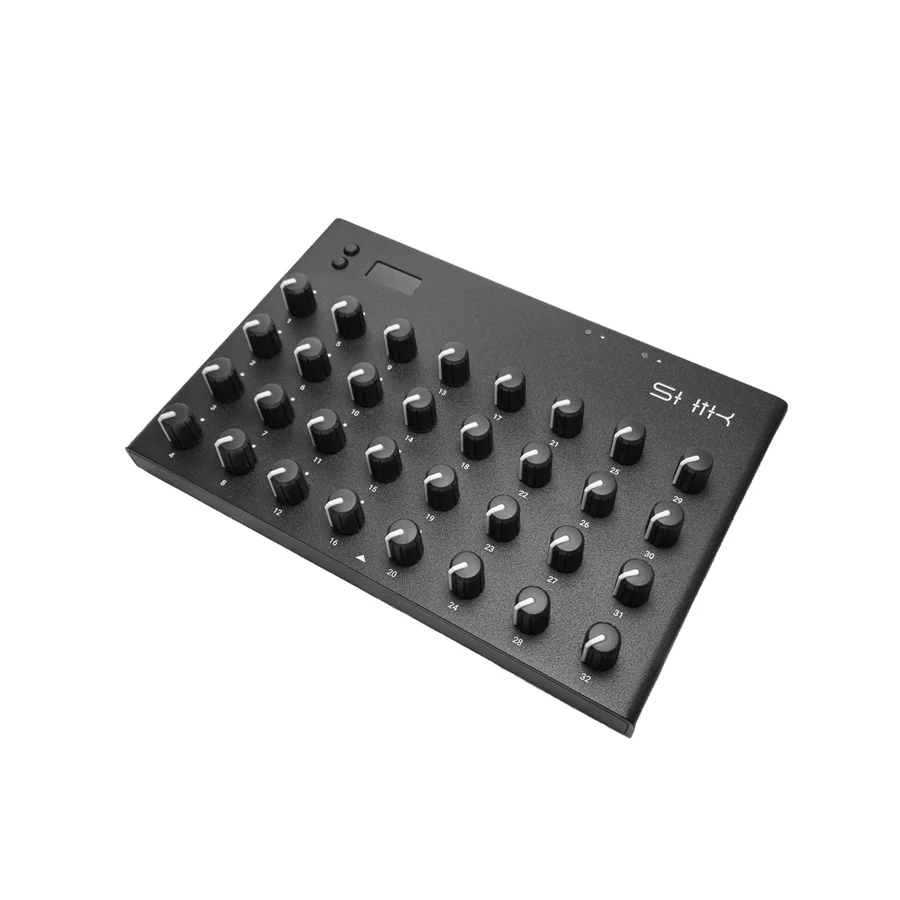

Product Photos
High-Resolution 32-Knob Control
The standout feature of the N32B Slim is its 4095-step high resolution. With approximately 32 times the precision compared to the 127 steps of standard MIDI controllers, it enables smooth and accurate control for filter sweeps and fine parameter adjustments.
Each knob can be assigned up to 4 macros, allowing simultaneous control of multiple parameters from a single knob. This effectively enables 128 parameter controls from 32 knobs.
Key Features
MIDI Learn
Enter MIDI Learn mode with a single button press to automatically receive signals from the controller and set up mappings. This eliminates the hassle of manually looking up CC numbers and enables quick setup.
Pickup Mode
Have you ever experienced a sudden value jump the moment you turn a knob on a MIDI controller?
Pickup Mode is a feature that doesn't send values when you start turning a knob until it "catches up" to the current value. Even when switching presets or after changing parameters on the DAW side, it prevents sudden value jumps and ensures smooth operation.
Preset Management
10 presets can be saved on the device, allowing quick recall of settings for different instruments or songs. Presets can be imported and exported through the N32B Editor, making backup and sharing settings with other N32B units easy.
Supported MIDI Protocols
The N32B Slim supports a wide range of MIDI protocols.
- Control Change (CC)
- 14-bit CC (high-resolution CC)
- NRPN (Non-Registered Parameter Number)
- RPN (Registered Parameter Number)
- Program Change
- Aftertouch
- System Exclusive (SysEx)
This enables flexible integration with virtually any MIDI-compatible device.
N32B Editor
Using the dedicated editor software N32B Editor for PC/Mac, all settings can be managed graphically. The Web Editor is also compatible with mobile devices, and with the appropriate adapter, it can be used as a regular MIDI controller with a smartphone.
SHIK developed this web-based editor to make MIDI configuration more intuitive. While traditional MIDI controller setup can be complex, the N32B Editor lets anyone easily configure knob mappings and macros through a visual interface.
N32B Web Editor Tutorial
Key Features
- CC/NRPN/macro assignment for each knob
- MIDI channel settings (global 16ch + individual macro settings)
- Pickup Mode activation
- Preset editing, import, and export
- Firmware updates
The intuitive interface makes even complex configurations easy.
Connectivity
The N32B Slim offers diverse connectivity options.
- USB-C port: For power supply and MIDI USB communication. Can be powered from PC or mobile battery
- MIDI IN (TRS): Receive signals from external MIDI devices
- MIDI OUT (TRS): Send MIDI data
- MIDI THRU (TRS): Pass through received MIDI data
Specifications
- Size: 208mm x 135mm x 19mm
- Weight: Approx. 0.5kg
- Housing: Metal frame construction
- Knob resolution: 4095 steps
- Presets: 10 slots
- Supported OS: Windows / macOS
The compact and lightweight design makes it perfect for both studio and live use.
Dimension Image
Compatibility
The N32B Slim is compatible with major DAWs.
- Ableton Live
- Logic Pro
- Cubase
- FL Studio
- Bitwig Studio
- Other MIDI-compatible software
Takazudo and SHIK Brand MIDI Controllers
This SHIK brand MIDI controller came to be carried in our shop after SHIK reached out to us, but I, Takazudo, actually already knew this MIDI controller very well. The reason is that in 2025, while researching whether I could build a MIDI controller myself, I discovered that the design for an older version of this SHIK brand MIDI controller had been published openly, so I built one myself based on that design. I even ordered the PCB myself and researched and purchased each component individually...
The photo shows that MIDI controller, and while it has a very handmade feel to it, because of this background, when they reached out to us, my reaction was "Oh, I know this well!"
And regarding this N32B Slim, something I can share from my experience using the older version is that one major advantage is the number of knobs. There are many MIDI controllers out there, and plenty of high-performance software as well. When you want to assign lots of parameters, the common frustration is not having enough knobs. In my case, I was using this 32-knob MIDI controller connected to an iPad as a mixer controller. In that scenario, for each channel you'd want volume, pan, reverb, delay, EQ (low), EQ (mid), EQ (high)... and setting those up per track, the knobs fill up surprisingly quickly.
There are various ways to solve this, but the most physical solution is undoubtedly having a MIDI controller with that many knobs. So the sheer number of knobs is definitely one advantage.
Additionally, this N32B Slim has undergone a massive upgrade compared to the older version that Takazudo DIY'd. The biggest improvement is the 4095-step high resolution. I've experimented with combining modular synths and MIDI controllers, and in my past experience, while the CV generated by modules is infinitely fine, basic MIDI controller CC control is limited to 127 steps. With that spec, for example, CVs that represent rapid intense changes like envelopes simply can't keep up in resolution when trying to replicate the same thing with CC. If you graph it, you won't get smooth curves — it becomes stepped and jagged. On this point, you can be confident that the N32B Slim is a high-spec MIDI controller.
The hardware construction has also evolved from hand-soldered DIY to primarily SMD, now featuring a slim form factor with a metal enclosure. The reason they contacted our shop was that they were receiving orders from Japan but customers had to bear the shipping costs each time, so they were looking for a reseller.
Please check out this high-quality MIDI controller, the N32B Slim.
Included Accessories
- N32B Slim unit
- USB-C to USB-A cable
- TRS to DIN5 MIDI adapter
SHIKについて
SHIKは、シンプルなMIDIコントローラーの開発からスタートし、ユーザーのフィードバックを取り入れながら進化を続けてきたブランドです。
現在のN32Bシリーズは4095段階の高解像度ノブ、Webベースエディターによる直感的なMIDI CC設定、マクロマッピング機能など、プロフェッショナルな要求に応える高度な機能を実現しています。
オマケ: 電氣美術研究會モジュラー小物セット付き
モジュラーシンセをもっと多くの方に触って欲しいという願いの元、電氣美術研究會さまにご協力頂き、モジュラー小物セットを本商品にバンドルさせて販売させていただいております。
パッチケーブルや電源ケーブル、ドレスナットのサンプルセット、モノラルスプリッターなど、内容は時期に応じて変化します。商品に同梱しますので是非お試し下さい！
That concludes our introduction of the N32B Slim.
メールアドレスをご登録いただくと、入荷時にお知らせいたします。
ご購入の事前予約を受け付けております。
登録確認後、詳細情報をメールにてお知らせいたします。
We hope you find this helpful.
