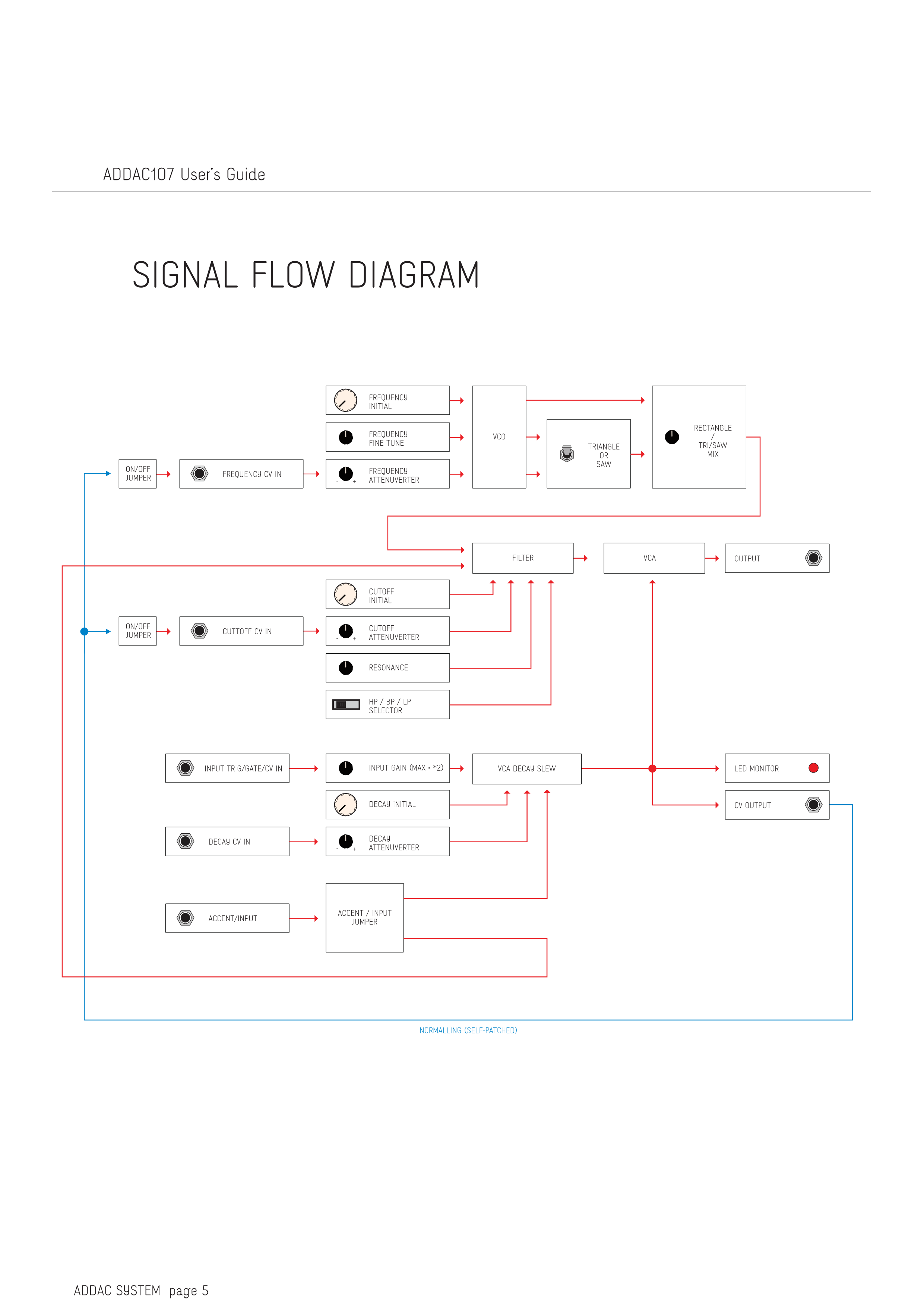

SIGNAL FLOW DIAGRAM

OUTPUT

FREQUENCY CV IN

FREQUENCY ATTENUVERTER +　-

FREQUENCY FINE TUNE

TRIANGLE OR SAW

FREQUENCY INITIAL

VCO

CUTTOFF CV IN

ON/OFF JUMPER

ON/OFF JUMPER

ACCENT / INPUT JUMPER

CUTOFF ATTENUVERTER +　-

INPUT TRIG/GATE/CV IN

INPUT GAIN (MAX = *2)

HP / BP / LP SELECTOR

RESONANCE

FILTER

CV OUTPUT

LED MONITOR

VCA

DECAY CV IN

DECAY ATTENUVERTER +　-

ACCENT/INPUT

DECAY INITIAL

VCA DECAY SLEW

RECTANGLE / TRI/SAW MIX

CUTOFF INITIAL

NORMALLING (SELF-PATCHED)
