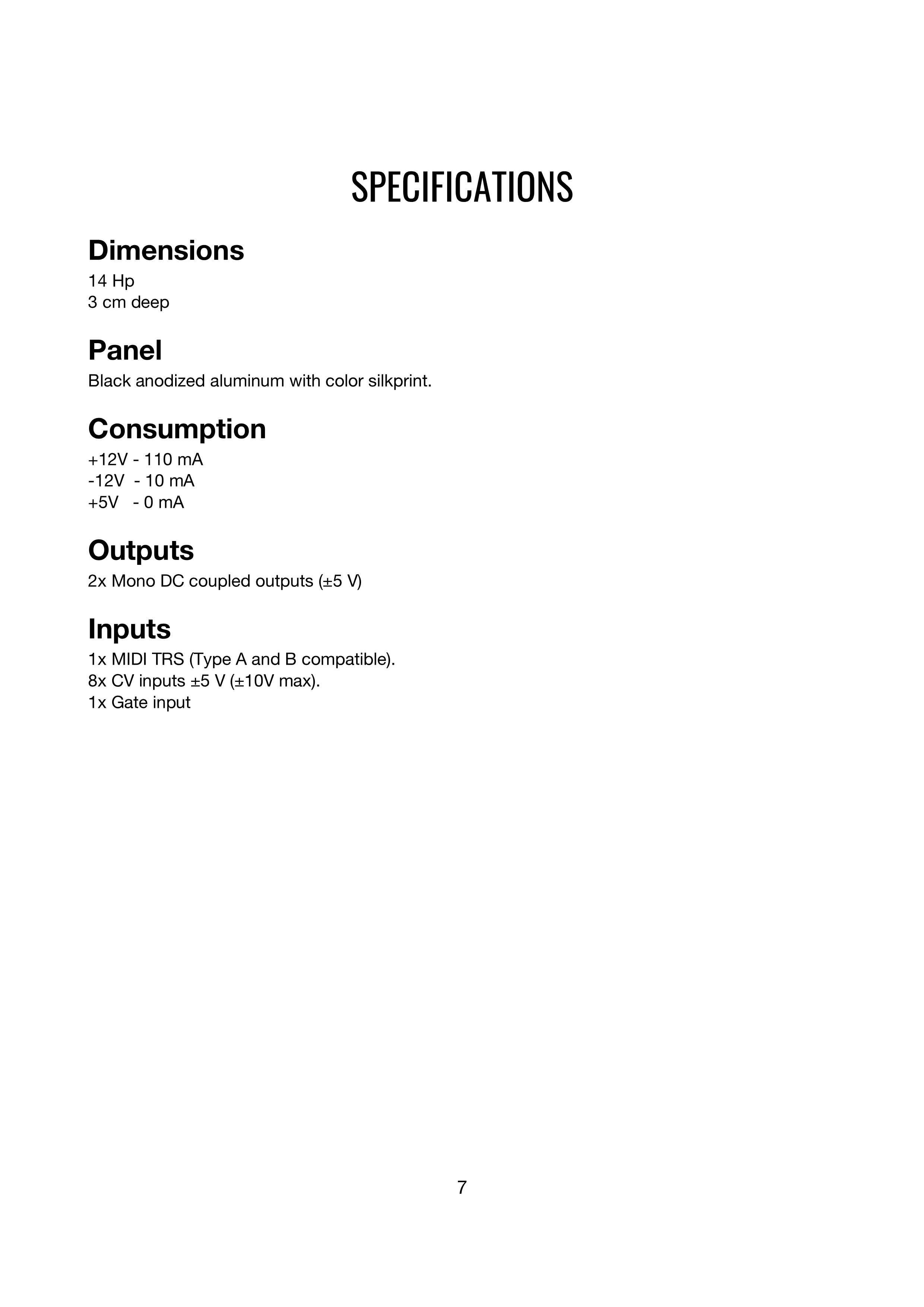

SPECIFICATIONS

Dimensions

14 Hp

3 cm deep

Panel

Black anodized aluminum with color silkprint.

Consumption

+12V - 110 mA

-12V - 10 mA

+5V - 0 mA

Outputs

2x Mono DC coupled outputs (±5 V)

Inputs

1x MIDI TRS (Type A and B compatible).

8x CV inputs ±5 V (±10V max).

1x Gate input
