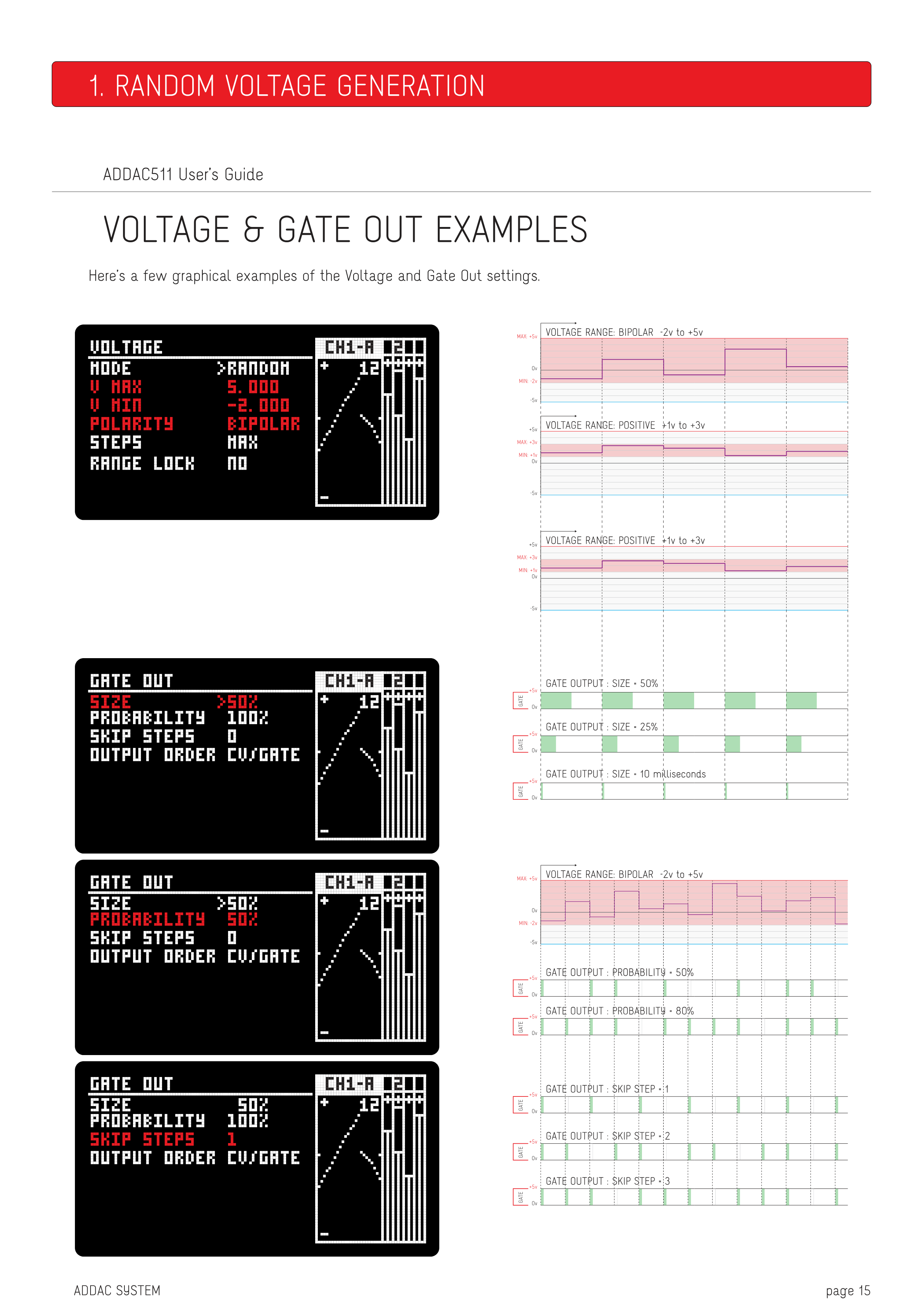

VOLTAGE & GATE OUTの例

VoltageとGate Out設定のグラフィカルな例をいくつかご紹介します。

1. ランダム電圧生成

VOLTAGE RANGE: BIPOLAR -2v to +5v

+5v
MAX: +5v
MIN: -2v
0v
-5v

VOLTAGE RANGE: POSITIVE +1v to +3v

+5v
MAX: +3v
MIN: +1v
0v
-5v

VOLTAGE RANGE: POSITIVE +1v to +3v

+5v
MAX: +3v
MIN: +1v
0v
-5v

VOLTAGE RANGE: BIPOLAR -2v to +5v

+5v
MAX: +5v
MIN: -2v
0v
-5v

GATE OUTPUT設定の例

SKIP STEP = 1

GATE
+5v
0v

SKIP STEP = 2

GATE
+5v
0v

SKIP STEP = 3

GATE
+5v
0v

PROBABILITY = 50%

GATE
+5v
0v

PROBABILITY = 80%

GATE
+5v
0v

SIZE = 50%

GATE
+5v
0v

SIZE = 25%

GATE
+5v
0v

SIZE = 10 milliseconds

GATE
+5v
0v
