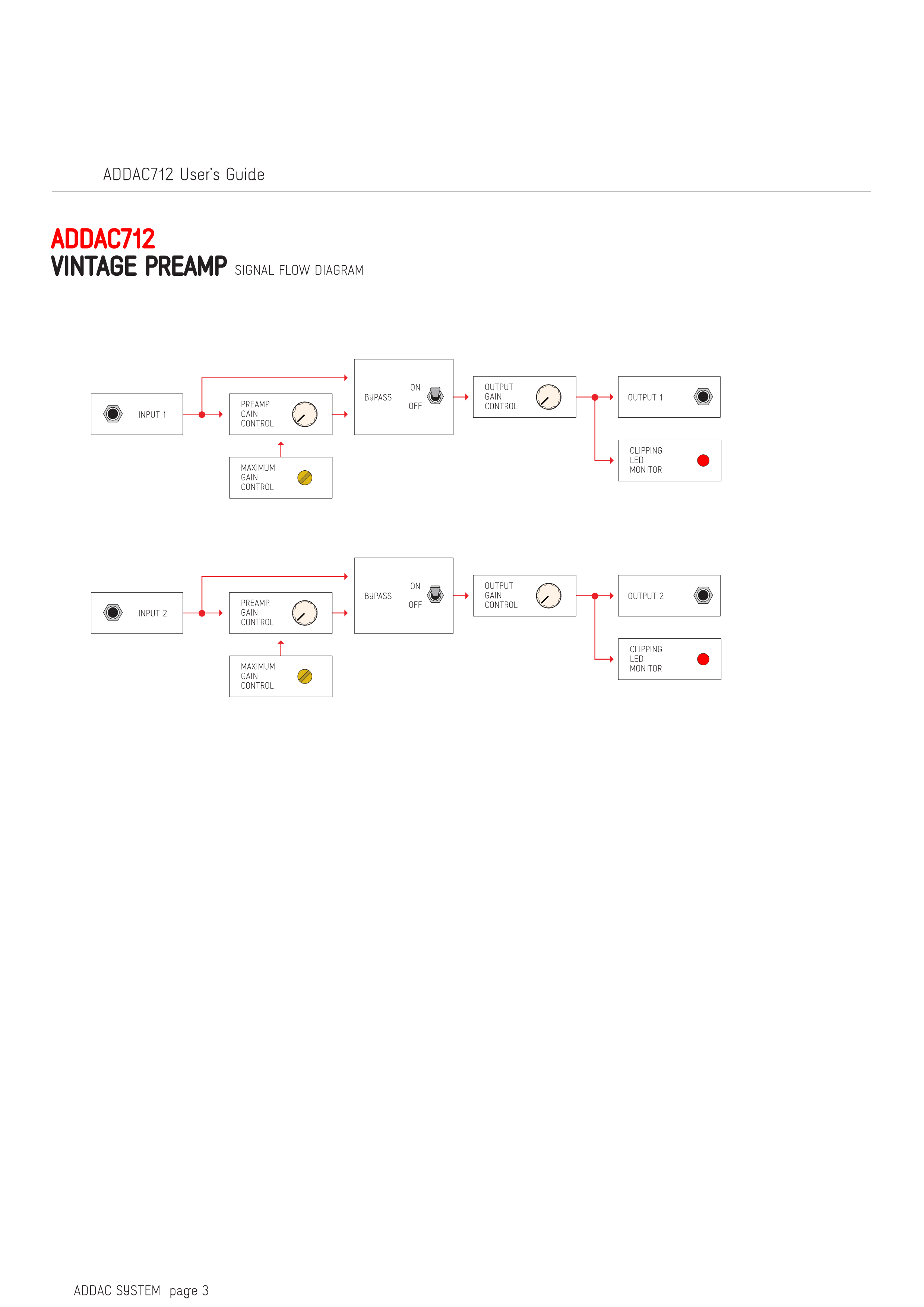

ADDAC712 VINTAGE PREAMP 信号フロー図

INPUT 1

OUTPUT GAIN CONTROL

PREAMP GAIN CONTROL

MAXIMUM GAIN CONTROL

OUTPUT 1

OUTPUT GAIN CONTROL

CLIPPING LED MONITOR

BYPASS ON OFF

INPUT 2

OUTPUT GAIN CONTROL

PREAMP GAIN CONTROL

MAXIMUM GAIN CONTROL

OUTPUT 2

OUTPUT GAIN CONTROL

CLIPPING LED MONITOR

BYPASS ON OFF
